Name: GYTY53 Direct Burial Outdoor Aerial Fiber Optic Cable
Brand: TTI Fiber
Price: 1 USD

Brand Name : TTI Fiber

Model Number : GYTY53

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T,

Supply Ability : 1000KM/M

Delivery Time : 5-8work days

Packaging Details : Drum

Laying mode : Direct Burial

Stranded method : SZ stranded core filled with gel

Operating temperature : - 40℃~ +60℃

Sheath : outer PE sheath (Anti-tracking sheath used for voltages above

Strength member : aramid yam assistant strength member

Minimum bending radius(mm) : Static:15 x O.D.*;Dynamic:30 x O.D.

Fiber counts : 2-432

Tube : Loose tube design

Certification : ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates

Contact Now

Factory 2-432 core outdoor aerial fiber optic cable underground fiber optic cable GYTY53

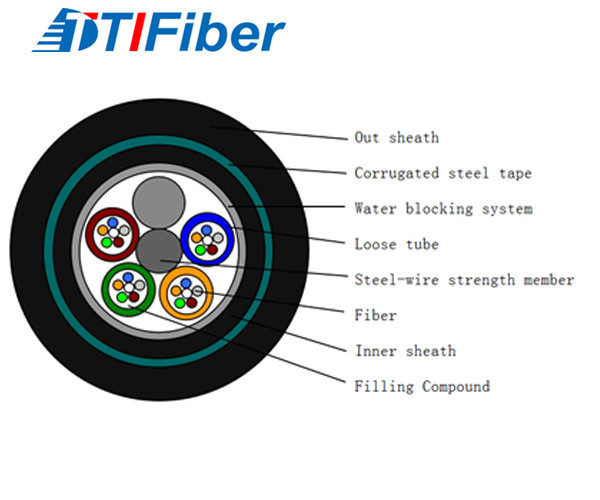

GYTY53 Direct Burial Outdoor Aerial Fiber Optic Cable

G.652D Single Mode Optical Fiber (B1.3)
Item		Standard	Unit
Attenuation	1310nm	≤0.35	dB/km
	1383nm	≤0.33	dB/km
	1550nm	≤0.21	dB/km
	1625nm	≤0.24	dB/km
Dispersion	1288nm～1339nm	\|D\|≤3.4	ps/(nm·km)
	1271nm～1360nm	\|D\|≤5.3	ps/(nm·km)
	1550nm	≤17.8	ps/(nm·km)
Zero-dispersion wavelength		1300～1322	(nm)
Zero-dispersion slope		≤0.091	ps/(nm2•km)
PMD	PMD single fiber	≤0.15	ps/√km
PMD	PMD Q links	≤0.08	ps/√km
MDF	1310nm	9.2±0.4	um
Cladding diameter		125±1.0	μm
Cladding non-circularity		≤0.8	%
Core-cladding concentricity error		≤0.6	μm
Coating diameter		245±10	μm
Cladding/coating concentricity error		≤10.0	μm
Cut-off wavelength		1.18～1.33	μm
Macrobend attenuation (ф 50mm, 100 cycles)	1550nm	≤0.05	dB
Macrobend attenuation (ф 50mm, 100 cycles)	1625nm	≤0.05	dB
Bending radius		≥5	m
Dynamic fatigue parameters		≥20	nd
Additional Attenuation @1310nm & @1550nm	Temperature cycling test: (-60℃～85℃, 3 cycles)	≤0.03	dB/km
	Water soak test: (23℃ for 30 days)	≤0.03	dB/km
	Damp heat test: (85℃, 85%RH for 30 days)	≤0.03	dB/km
	Thermal aging test (85℃ for 30 days)	≤0.03	dB/km
	Warm water soak test: (60℃ for 15 days)	≤0.03	dB/km
